Yaohua XK3190-D10 Weighing Scale Indicator

Product Details

Description:

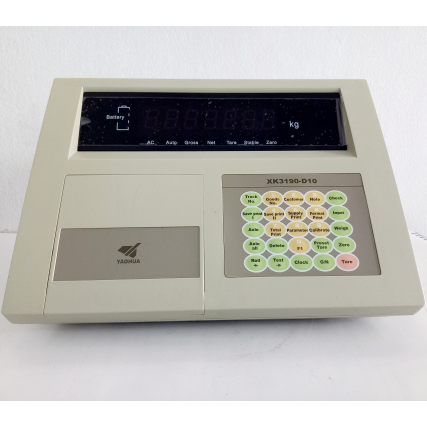

Yaohua XK3190-D10 Weighing Indicator

The Yaohua XK3190-D10 weighing scale indicator utilizes high-precision A/D conversion technology, which is widely employed in static weighing systems featuring 1–8 load cells, such as electronic floor scales, truck scales, and static railway scales. It utilizes a standard parallel printer interface and a common scoreboard interface, employing the current loop (20 mA) technique.

Full Specification

Basic
Item	Weight Machine
Model	✅ Yaohua XK3190-D10
Scale Type	Industrial
Physical
Material	ABS Plastic
Display & Interface
Display	7 bits LED with 7 status indications
Power
Power Supply	DC 6V/10Ah battery, AC 187-242V, 49-51Hz

A/D conversion method: ∑-Δ
A/D conversion speed: 200 times/sec
Input signal range: -30mV to 30mV
Verified counts: 3000
Readability: 30000
Maximum internal resolution: 600000
Maximum connection: 8 at 350 ohm or 16 at 700 ohm
Load cell connection mode: 6 wire, auto compensation for distance ≤50 meters
Scoreboard interface
- Serially sending over a 2000-meter transmission distance using a 20mA current loop and a 600 baud rate
Communication interface (RS232-C standard & RS422 optional)
- Selectable baud rate serial communication interface using either the continuous transmission technique or the on-command method
Print interface (Standard)
- Wide-line printer models KX-P1121, KX-P1131, LQ300K, and a micro printer for model D10P can all be connected in parallel
