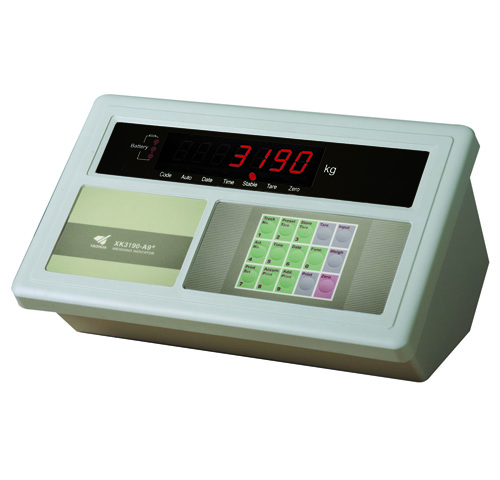

Digital Indicator A9

Weight Indicator, XK3190-A9

Application
This weight indicator can be used in electronic floor scales, electronic truck scales and other static weighing systems, equipped with 1-8 digital load cells.

Features and Functions
1. This weight indicator is able to process signals of -16-18mV.
2. High precision no re-calibration is needed if the indicator is changed.
3. Anti-reverse and short circuit proof functions.
4. Strong anti-jamming capability and wide range of applications.
5. AD/DC power supply, battery inside
6. 7-bit, 0.8inch LED display, 3-level battery indication
7. The weight indicator is able to set up zero-tracking range, zero(auto/manual) range
8. 2-point calibration correction function, 2 compensation calibration methods
9. Storage of 1001 groups weighing records, 1000 groups of vehicle NO., 201 groups of cargo NO.
10. Weighing bill can be printed horizontally or vertically.
11. RS232C communication interface (RS422/485 optional)
12. Scoreboard interface and standard parallel print interface are available
13. A9 P type with built-in printer.
